除铁棒

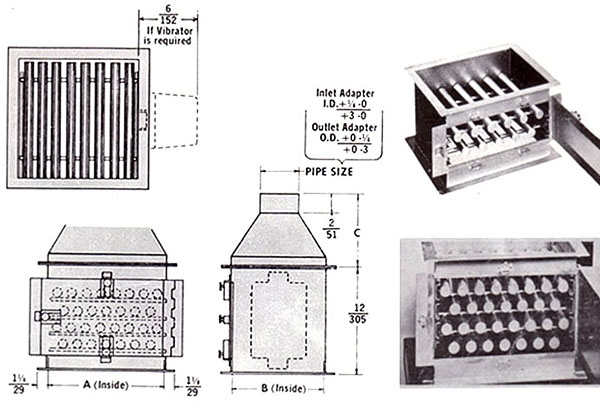

| 格子型MAGNET(KRM型)(KLM型) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PIPE SIZE | GRATE SIZE | A | B | C | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | in. | mm |
| 2 | 51 | 81/2×6 | 216×152 | 81/2 | 216 | 6 | 152 | 8 | 203 |
| 3 | 76 | 101/2×8 | 267×203 | 101/2 | 267 | 8 | 203 | 8 | 203 |
| 4 | 102 | 121/2×10 | 318×254 | 121/2 | 318 | 10 | 254 | 8 | 203 |
| 5 | 127 | 141/2×12 | 368×305 | 141/2 | 368 | 12 | 305 | 8 | 203 |
| 6 | 152 | 161/2×14 | 419×356 | 161/2 | 419 | 14 | 356 | 9 | 229 |
| 8 | 203 | 181/2×16 | 470×406 | 181/2 | 470 | 16 | 406 | 9 | 229 |
| 10 | 254 | 241/2×22 | 622×559 | 241/2 | 622 | 22 | 559 | 11 | 279 |
| 12 | 305 | 261/2×24 | 673×610 | 261/2 | 673 | 24 | 610 | 11 | 305 |
| 14 | 356 | 281/2×26 | 713×660 | 281/2 | 724 | 26 | 660 | 14 | 356 |
| 16 | 406 | 321/2×30 | 825×762 | 321/2 | 825 | 30 | 762 | 16 | 406 |
